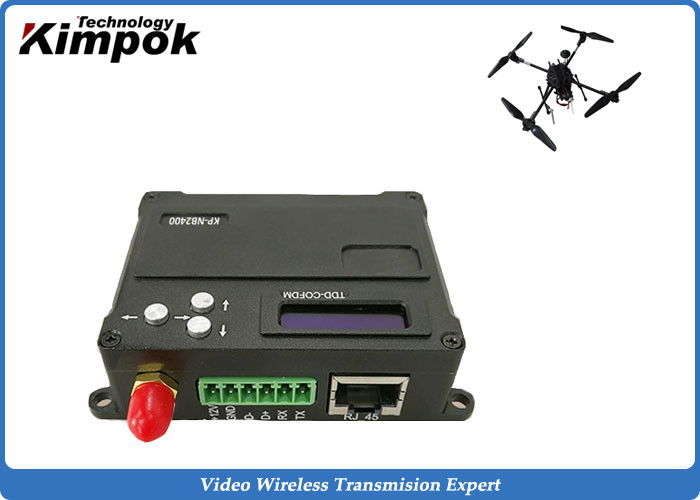

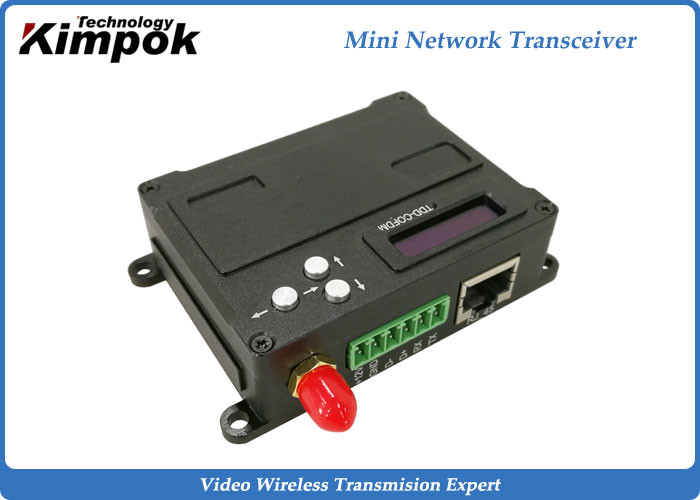

2.4Ghz Ethernet Radio UAV Transceiver Video + Data IP Transmitter and Receiver 1 Watt
Description:
KP-NB2400 TDD_COFDM are the new developing products of our company.It is wireless transmission equipment for our latest Mini pure digital.The use of advanced time division processing , TDD bidirectional network transmission and the leading COFDM modulation technology combined, provide complete bi-directional encryption (support AES_128 encryption) network data transmission channel,anti multipath, high speed mobile data, voice the perfect product. H.264 codec technology as the core,assigning channel resources through slot control, through the sub-carrier frequency flexibly assigned to multiple user terminals,within the same frequency maximized realized access multiple endusers multiple access. In the NLOS and high speed movement realize real-time two way transparent information transmission, Multiple wireless networks can be integrated with each other layout large network coverage.
As its super small volume, light weight especially suitable for application in UAV, High-speed Rail, train and other complex environments.
Features:
- Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology
- The baud ratre can Up to 921600bps maximum.
- Smart settings,simple operation, easy to use;
- Support transparent PTP&PMD network technology
- Safety with AES 128 bit, can set user’s password;
- Support non line of sight ( NLOS ) high-speed mobile transmission
- Provide standard RS-232&RS-485 + RJ45 ethernet
- Transmit/receive video audio,data and other multimedia signals simultaneously
- Support high standards of Industrial and military level applications
- The small volume, light weight, easy to carry, the radiating aluminum casing
- High clear OLED digital display, the interface simple and easy operation
Specification:
| Power supply | DC7V~17V, 6W consumption |
| Ethernet | 10/100BaseT, Auto-MDI/X, IEEE802.3 |
| TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS |
| Output frequency | 2100-2500MHz (optional) |
| Output rf power | 100-1000mW(30dBm) (adjustable) |
| Bandwidth | 4MHz/8MHz (adjustable) |
| Interface | RJ-45 ethernet, RS232/RS485/RS422 |
| Resolution | Support 720P and 1080P@50/60hz, 30 frames |
| Encryption mode | 128bit AES(or 256bit AES) |
| Error correction mechanism | 32bit of CRC,ARQ |
| Modulation | TDD_COFDM |
| Parameter control | Through OLED control panel to modify parameters |
| Transmission Distance | 100-1000m |
| Working temperature | -40°C ~ 85°C |
| Dimension | 75*51*22mm |
| Weight | 135g |
Product application:
It has advatange of small volume and light weight,especially widely used in UAV/ drones /Quadcopter/Octocopter/hexacopter,WIFIBOT Network building and etc.. such fast-moving complex environment video data signals transmission.
